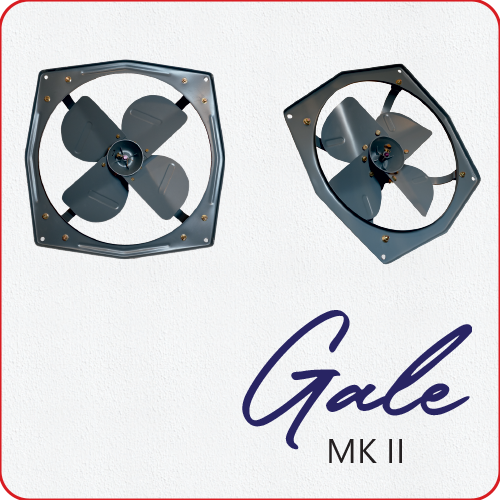

gale-mk-ii-exhaust-fans

Features

  • Heavy Duty Totally enclosed Motor
  • Aluminium Motor Body with Fins
  • Capacitor Start & Run Induction Motor
  • Copper Winding
  • Class F Insulation (155°C)
  • Aluminum Epoxy Powder coated body
  • Sealed Double Ball Bearings, with P6 tolerance
  • Precisely balanced blade, Aerodynamic Design with Aluminium diecast Hub
  • Metal Frame with Rubber Mounting
  • Energy Efficient Motor
  • Low Noise Level
  • High Air Delivery
  • Safe to Use, Long Life
Size Supply Speed (RPM) Input current (A) Input Power (W) Air Delivery (M3/hr) Size (A) mm Size (B) mm
15 MK II Single Phase, 50Hz 1400 0.45/0.75 100/170 2000/3000 483 475
18 MK II Single Phase, 50Hz 1400 0.65/1.7 143/375 3900/5500 560 450

Also Available

  • 110 V Single Phase 60Hz Fan
  • 380v/400v/440v 60Hz Fan
  • IEC 60335-1 & 2 (CB Scheme) Certified Mode
  • Motor with inbuild resettable Thermal Protector
  • Fan with Guard & Louvers
  • Reversible Fans (Blade Mounting)
